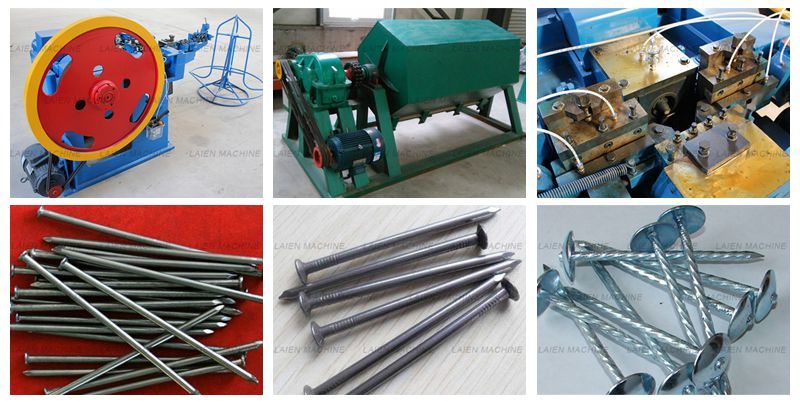

Automatic Nail Making Machine
Automatic Nail Making Machine
Products description
1. Nail making machine main parts(shaft, cam, gear) are made of high grade steel with professional heat treatment, so as to ensure longer working life and less time maintenance.
2. Each model machine could make different kinds size nail, the nail length could adjust on machine and nail diameter need feed with related diameter coil wire.
3. Each nail making machine supply related nail mould, nail knife and punch pin etc spare parts.
This kind of machine has been widely used in modern industry. Automatic nail making machine can be used to produce various type and size of nail. It can also be used to make various common and special nail.
Parameter
|
Parameter |
unit |
Z94-6.5C |
Z94-5.5C |
Z94-4.5C |
Z94-3.4C |
Z94-2.8C |
Z94-1.6C |
|
Dia of nail max |
mm |
6.5 |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
|
Dia of nail min |
mm |
3.4 |
3.1 |
2.8 |
1.8 |
1.2 |
0.9 |
|
Length of nail max |
mm |
250 |
152 |
100 |
75 |
50 |
25 |
|
Length of nail min |
mm |
100 |
70 |
50 |
30 |
16 |
9 |
|
Productivity |
mm |
160-200 |
180-220 |
280 |
300 |
320 |
460 |
|
Motor power |
kw |
11 |
5.5 |
4 |
3 |
2.2 |
1.5 |
|
Weight |
kg |
5500 |
2600 |
2000 |
1800 |
1450 |
1200 |
|
Overall dimensions |
mm |
3250x1850 x1800 |
2600x1700 x1700 |
2200x1600 x1650 |
2000x1400 x1400 |
1700x1300 x1400 |
1500x1300 x1200 |
