Barbed wire machine
It is suitable for low-carbon wire,galvanized wire,pvc coated wire.
It is widely used in defense, railway, highway, agriculture and animal husbandry for protection and fencing.Easy opeartion,smooth movement,low noise,save energy,and adopt advanced electronic counting control.
|
Item |
CS-A Normal double twisted |
CS-B Single twisted |
CS-C reverse twisted |
|
Motor |
3kw |
2.2kw |
2.2kw |
|
Rated output |
70-120kg/h |
50-60kg/h |
50-100kg/h |
|
Weight |
1500kg |
1200kg |
1200kg |
|
Overall Dimension |
1900mmx1300mmx980mm |
1900mmx1300mmx980mm |
1900mmx1300mmx980mm |
|
Wire collection part size |
1800mmx750mmx750mm |
1300mmx800mmx700mm |
1300mmx800mmx700mm |
|
Barb space |
3",4",5" or 4",5",6" |
As required |
3",4",5" or 4",5",6" |
|
Twist |
4 |
4 |
4 |
|
Strand Diameter |
1.8-3.0mm |
1.6-2.6mm |
1.5-2.8mm |
|
Wire Diameter |
1.7-2.8mm |
1.6-2.2mm |
1.5-2.6mm |
|
Rotating Speed of Drive shaft |
432r/min |
357r/min |
432r/min |
Advatanges：
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Guiding system to avoid wire snarls.

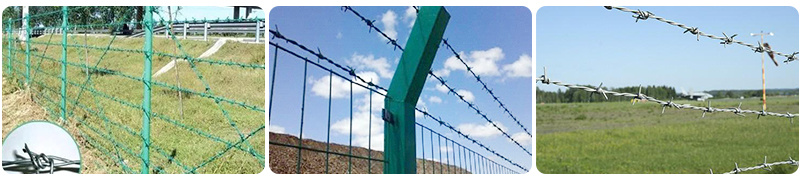

| Finished Prouducts And Application |
