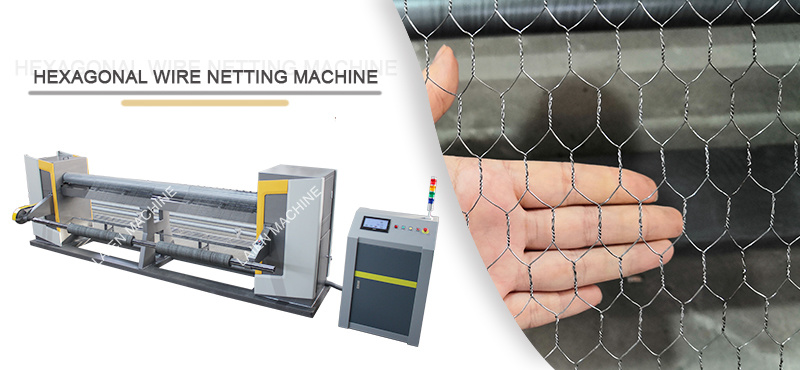

PLC control straight and reverse hexagonal wire mesh machine
Raw material:Galvanized steel wire,low carbon steel wire,stainless steel wire,etc.
Technique Parameter
|
Model |
Rated Size of Cell(mm) |
Max Net Breadth (mm) |
Max Thread Diameter (mm) |
Theoretical Productivity |
Dimension (LxWxH)mm |
Weight (T) |
|
|
Mesh/min |
M/h |
||||||
|
ZJ1/2 |
16 |
2600/3300/4300 |
0.4-0.65 |
60-65 |
60-70 |
4500x2200x1450 |
4.6 |
|
ZJ3/4 |
20 |
2600/3300/4300 |
0.45-0.7 |
60-65 |
70-80 |
4500x2200x1450 |
4.6 |
|
ZJ1 |
28 |
2600/3300/4300 |
0.45-1.1 |
55-60 |
80-90 |
4500x2200x1450 |
4.6 |
|
ZJ1.2 |
32 |
2600/3300/4300 |
0.45-1.2 |
55-60 |
90-100 |
4500x2200x1450 |
4.6 |
|
ZJ1.5 |
40 |
2600/3300/4300 |
0.5-1.5 |
50-55 |
110-120 |
4500x2200x1450 |
4.6 |
|
ZJ2 |
57 |
2600/3300/4300 |
0.7-1.65 |
50-55 |
120-130 |
4500x2200x1450 |
4.6 |
|
ZJ3 |
86 |
2600/3300/4300 |
0.7-1.7 |
45-50 |
150-160 |
4500x2200x1450 |
4.6 |
Advantage:
1.PLC control and touch screen.More technical parameters can be set and adjusted on the touch screen.
Very convenient for workers to operate.
2.More accurate,Less Wire and mesh broken.Once wire or mesh broken,alarm will reflect and machine will stop automatically.
3.Lubricating system makes the machine to work more easily.
4.Speed more fast and production capacity imporved more.
Usage:
The hexagonal wire mesh could be applied to chicken wire, rabbit fence, garden fence, decorative mesh, stucco netting.
| Finished Prouducts And Application |
