Gabion mesh machine
Description:

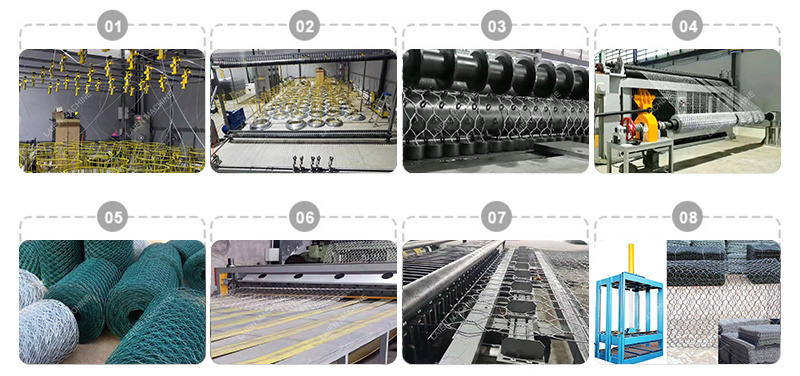

PLC control Gabion machine with warning device is designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available. It also can make the machine according to customers’request
|
Model |
Mesh size |
Width |
Wire diameter |
Spindle Speed |
Twist |
Dimension (LxWxH) |
Weight |
|
(mm) |
(mm) |
(mm) |
(r/min) |
(r ) |
(mm) |
T |
|
|
LE2300A |
60X80 |
2300 |
1.8-3.2 |
25 |
3 |
5200x1400x2400 |
13 |
|
LE2300B |
80X100 |
1.8-4.0 |
3 |
||||
|
LE2300C |
100X120 |
1.8-4.0 |
3 |
||||
|
LE2300D |
120X150 |
1.8-4.2 |
20 |
3 |
|||
|
LE3300A |
60X80 |
3300 |
1.8-3.2 |
25 |
3 |
6200x1400x2400 |
14 |
|
LE3300B |
80X100 |
1.8-4.0 |
3 |
||||
|
LE3300C |
100X120 |
1.8-4.0 |
3 |
||||
|
LE3300D |
120X150 |
1.8-4.2 |
20 |
3 |
|||
|
LE4300A |
60X80 |
4300 |
1.8-3.2 |
25 |
3 |
7200x1400x2400 |
15 |
|
LE4300B |
80X100 |
1.8-4.0 |
3 |
||||
|
LE4300C |
100X120 |
1.8-4.0 |
3 |
||||
|
LE4300D |
120X150 |
1.8-4.2 |
20 |
3 |
|||
|
LE5300A |
60X80 |
5300 |
1.8-3.2 |
25 |
5 |
8200x1400x2400 |
17 |
|
LE5300B |
80X100 |
1.8-4.0 |
5 |
||||
|
LE5300C |
100X120 |
1.8-4.0 |
5 |
||||
|
LE5300D |
120X150 |
1.8-4.2 |
20 |
5 |
Advantage:
It adopt PLC touch screen frequency control,which has the function of frequency control of motor speed according to different of wire diameter, has buffer function when speed increase or decrese in very short time, can count output every day or every year, can save about 30% energy.
Usage:
1. It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.

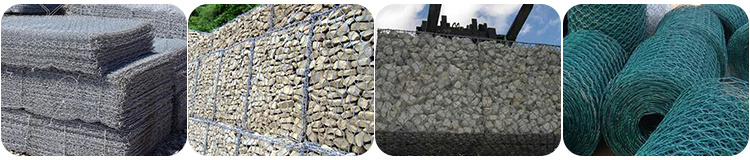

2. It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge
