4-14 automatic wire mesh welding machine
Classification:
Description
We can supply different kinds of models welded mesh machine :BRC welded mesh machine ,Automatic Reinforce wire mesh welding machine ,animal cage mesh machine ,3d fence welded wire mesh machine,Automatic fence production line ,cable tray making machine ,868 fence mesh machine ,Anti climb fence machine ... Also customized models according to customersrequest.Adapt to different wire diameter ranges and application ranges, Mechanical welding model and pneumatic welding model are available for you choose ..

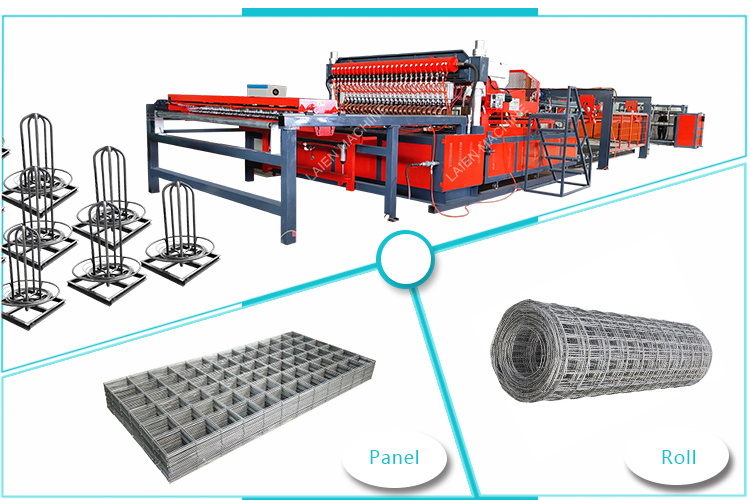

Pneumatic reinforced mesh welding machine is for making concrete panel and roll.
One machine can make large range wire diameter:3-8mm/ 3-12mm/ 4-16mm
Pneumatic welding make strong finished product. Also with high speed 70-100times/min
|
Model |
GWJ2000 |
GWJ2500 |
GWJ3000 |
|
Max Mesh width |
2000mm |
2500mm |
3000mm |
|
Mesh Length |
3-6m(Max12m） |
3-6m(Max12m） |
3-6m(Max12m） |
|
Mesh type |
By sheet or coil |
By sheet or coil |
By sheet or coil |
|
Line Wire Spacing |
100-300mm |
100-300mm |
100-300mm |
|
Cross Wire Spacing |
50-300mm |
50-300mm |
50-300mm |
|
Wire Diameter |
3-12mm |
3-12mm |
3-12mm |
|
Line Wire Type |
3-6 by coils/5-12 by bars |
3-6 by coils/5-12 by bars |
3-6 by coils/5-12 by bars |
|
Cross Wire Type |
Bars |
Bars |
Bars |
|
Welding speed |
60-85times/min |
60-85times/min |
60-85times/min |
|
Electric Power |
185KVAX5 |
185KVAX6 |
185KVAX8 |
